Forensic Investigation of the Steel Pile Pipe of the Mahakam Dolphin After Collision Using Side Scan Sonar and Bathymetry
Article Sidebar
https://doi.org/10.32487/nuce.v4i1.713
PDF downloads: 19
Main Article Content
Abstract

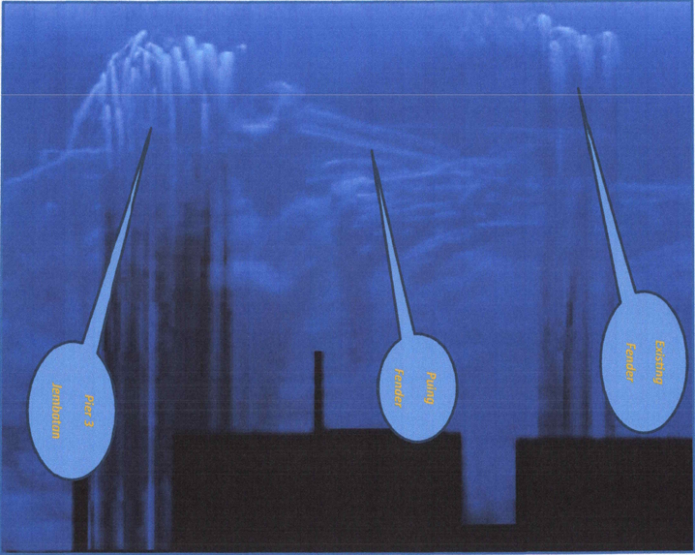

The Mahakam River in Samarinda, East Kalimantan, Indonesia, is a critical maritime transportation route with high vessel traffic, increasing the risk of collisions with bridge protection structures like dolphins. This study presents a forensic investigation into the position and shape of steel pile pipes of the Mahakam Dolphin after a collision incident, employing integrated bathymetric and side scan sonar surveys. Conducted in April 2026, the survey utilized Garmin ECHOMAP UHD2 62SV and GT52HW-TM transducers for bathymetry, alongside side scan sonar for high-resolution underwater imaging. Results revealed a compact debris field of collapsed steel pile pipes and pilecap, covering approximately 500 m² with an average thickness of 1.5 m. Bathymetric data indicated significant riverbed alterations, including scouring and sedimentation patterns. The debris distribution analysis confirmed minimal dispersion due to low current velocities, posing navigation risks and potential structural instability to adjacent bridge piers. The study underscores the efficacy of combined geophysical techniques in post-collision forensic assessments and recommends relocating the dolphin structure to a debris-free zone. These findings provide actionable insights for maritime infrastructure management and collision impact mitigation
Downloads Statistics
Article Details
This work is licensed under a Creative Commons Attribution-NonCommercial 4.0 International License.
This work is licensed under a Creative Commons Attribution-NonCommercial 4.0 International License. Any further distribution of this work must maintain attribution to the author(s) and the title of the work, journal citation and DOI.
References
Brown, T. L., Smith, J. R., & Johnson, K. M. (2015). Debris field analysis after vessel collisions with bridge dolphins. Journal of Marine Engineering & Technology, 14(2), 78–89.
Chen, W., & Li, Y. (2017). Advanced sonar techniques for underwater forensic investigations. Forensic Science International, 275, 1–10.
Davis, J. R. (2018). Hydrographic surveying and underwater mapping. CRC Press.
Djunarsjah, Y. (2005). Pedoman survei batimetri. Badan Standar Nasional Indonesia.
Efendi, A. W. (2025a). Jurnal Rivet (Riset dan Invensi Teknologi) Investigation for Collapsed Navigation Structures in The Mahakam River Delta by Bathymetry and Sonar. In Universitas Dharma Andalas (Vol. 05, Number 1).
Efendi, A. W. (2025b). Jurnal Rivet (Riset dan Invensi Teknologi) Investigation of the Collapsed Dolphin Structure of the Mahakam Bridge Using Bathymetry and Side-Scan Sonar After Collision. Universitas Dharma Andalas, 05(02), 66.
Evans, K., & Wilson, L. (2019). The impact of vessel collisions on riverine infrastructure. Journal of Waterway, Port, Coastal, and Ocean Engineering, 145(3), 4019008.
Fischer, P. J., & Mayer, L. A. (2016). Side scan sonar imaging and interpretation. In Marine habitat mapping (pp. 145–162). Springer.
Garcia, M. H. (2017). Sedimentation engineering: Processes, measurements, modeling, and practice. American Society of Civil Engineers.
Hameed, A., Khan, S., & Ahmed, W. (2020). Maritime traffic collision risks in riverine environments. Transportation Research Part F: Traffic Psychology and Behaviour, 73, 1–15.
International Association of Marine Aids to Navigation, & Authorities, L. (2018). Guidelines for the use of side scan sonar.
Jones, S. D., & Pacheco, B. (2019). Design and performance of bridge dolphins under impact loads. Journal of Bridge Engineering, 24(5), 4019028.
Kostaschuk, R., & Best, J. (2019). Sediment transport in rivers. Annual Review of Fluid Mechanics, 51, 107–130.
Lambert, T. N., & Smith, J. P. (2017). Forensic engineering of maritime structures. Engineering Failure Analysis, 80, 1–12.
Lurton, X. (2010). An introduction to underwater acoustics: Principles and applications. Springer.
MacLennan, D. N., & Simmonds, E. J. (2005). Fisheries acoustics. Blackwell Science.
Martinez, A., & Rodriguez, B. (2021). Bathymetric survey techniques in shallow rivers. Journal of Surveying Engineering, 147(1), 4020009.
Reed, T. B., & Hussong, D. M. (1989). Seismic stratigraphy of the ocean basins. Springer.
Ward, S. L., Green, M. A., & Roberts, H. H. (2018). Morphological changes in riverbeds due to bridge collisions. Geomorphology, 312, 1–12.
